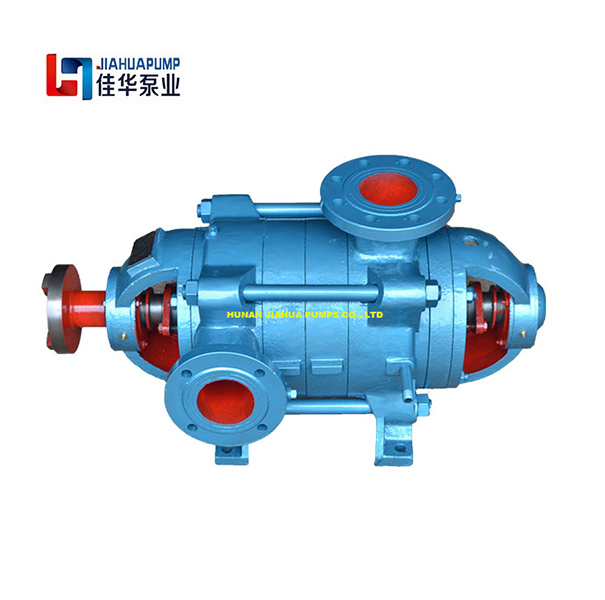

D Series Water Pump

D types of multistage centrifugal pumps Features & Performance:

Stages: 2~ 14

Capacities: 3.75cbm/h ~ 850cbm/h

Heads:  19m ~ 816m

Usage: clean water

Temperature: below 80 degree Celsius

Max inlet pressure: 0.59MPa

Diameter of inlet & outlet: 40mm~300mm

Features:

1. Reduced energy costs achieved by sizing impellers for best hydraulic fit and operating efficiency

2. Low installation costs enabled by movable suction head casing, which easily adapts flange position to site conditions

3. Low inventory carrying costs enabled by high degree of parts interchangeability

4. Reliable bearing performance provided by grease lubricated deep groove and cylindrical roller bearing, respectively meeting DIN 625 and DIN 5412

5. Shaft sealing by a stuffing box or mechanical seal to suit application requirements

6. Impeller balancing holes

7. Standard bearings and sealing for easy maintenance

Applications:

The horizontal configuration of multistage pumps is best applied in applications like these:

• Reverse Osmosis

• Boiler Feed

• Shower

• Spray

• Cogeneration

• Pressure Boosting

• High Pressure Cleaning

• Snow making

• Condensate

• Mine dewatering
